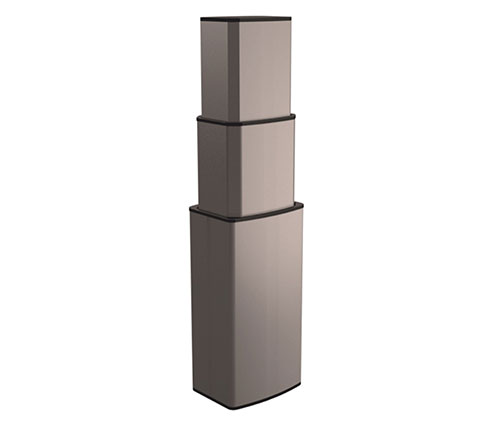

TELESCOPIC LIFTING COLUMN

Key Features

• More Powerfull
• More Silent
• More Duty Cycle
• Lower Cost
• Longer Life

Standart Features

• Push Load Capacity 2000 N (max.)
• Speed (full load to no load) 7-14 mm/s
• Installation Dimension (min) Stroke/2 + 150 mm
• Stroke 100-500 mm
• Motor 24 V DC
• Power Consumption 120 W
•
• Current Consumption 5 A
• Duty Cycle 10% (1/9)
• Housing Colour Anodized Aluminium
• Guidance Profile Anodized Aluminium
• Protection Type IPX6
• Cable 1,5 m with Minifit Plug
