LINEAR ACTUATOR

Key Features

• More Powerfull
• More Silent
• More Duty Cycle
• Lower Cost
• Longer Life

Standart Features

• Push Load Capacity 6000N (max.)
• Push Load Capacity 4000N (max.)
• Speed (full load to no load) 7-9 mm/s

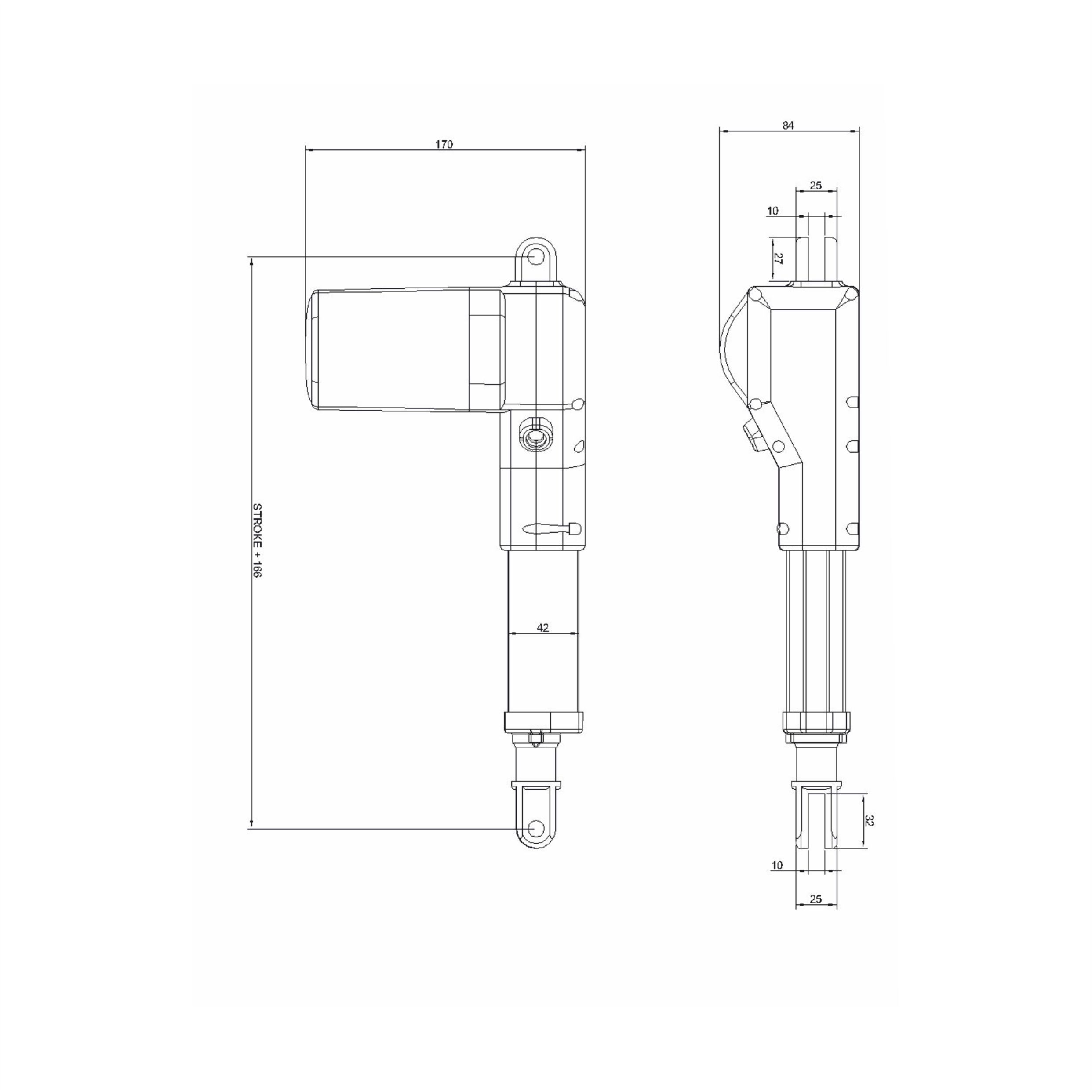

• Installation Dimension Stroke + 166 mm
• Motor 24 V DC
• Power Consumption 120 W
• Current Consumption 5A
• Limit Switch Signal type
• Duty Cycle 10% (1/9)
• Housing Colour Grey RAL 7035
• Guidance Profile Anodized Aluminium
• Stroke Pipe Anodized Aluminium
• Gear Clevis 4 x 90 °
• Protection Type IPX6
• Cable 1,5 m with Minifit Plug
